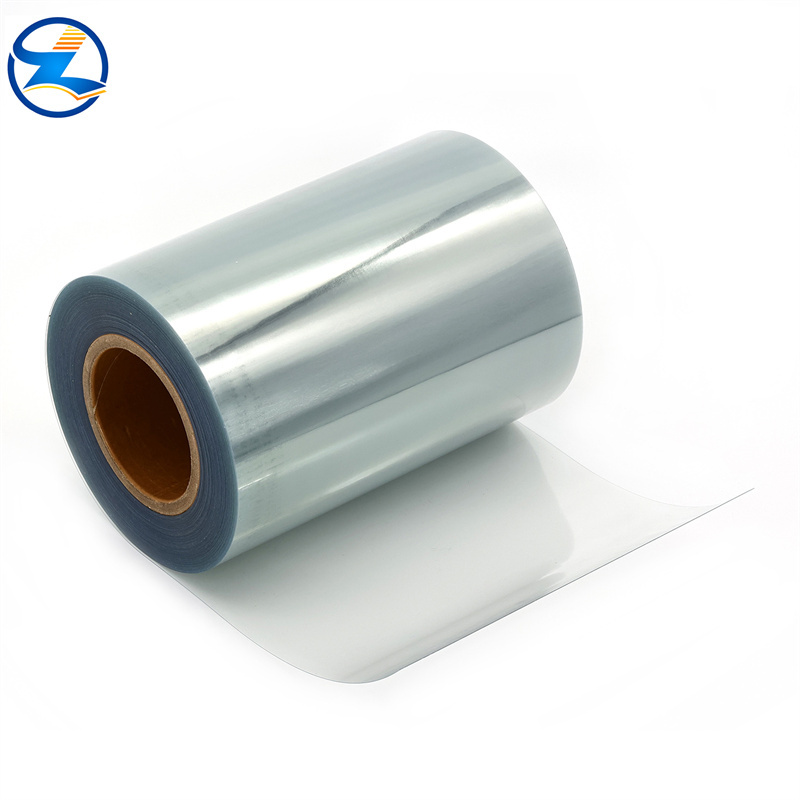

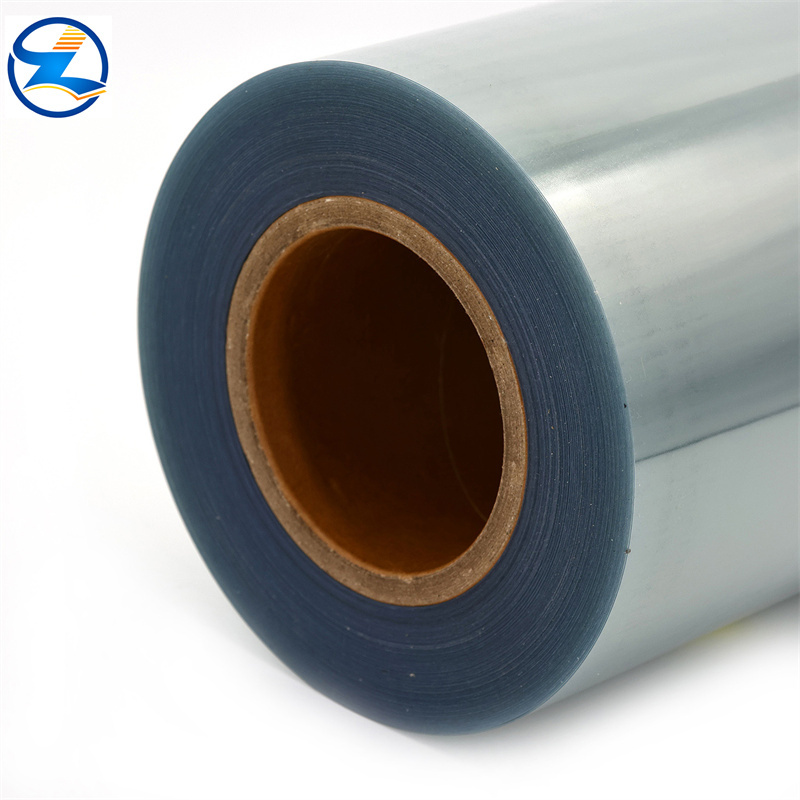

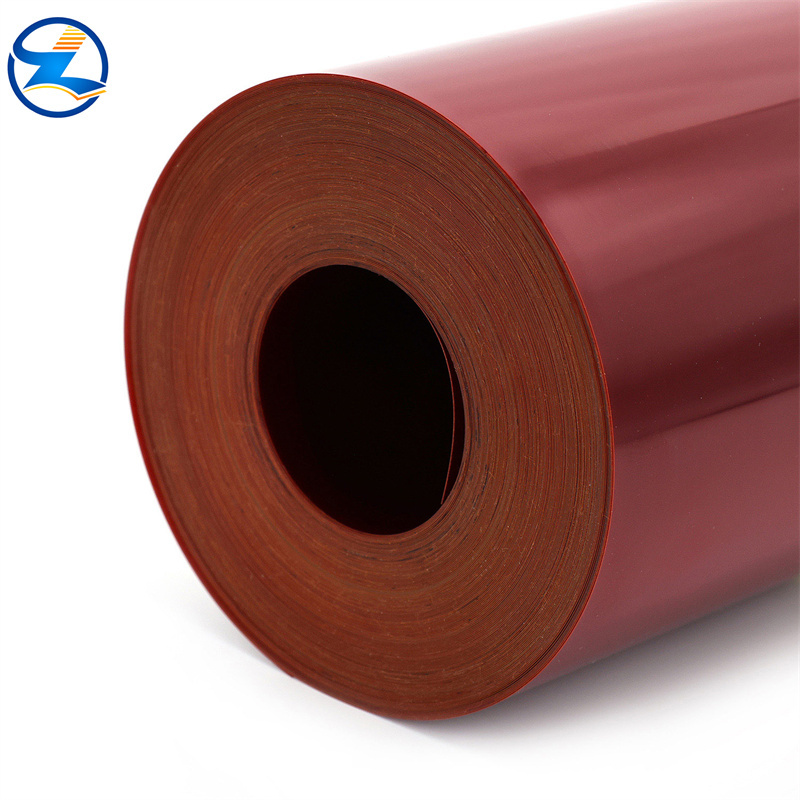

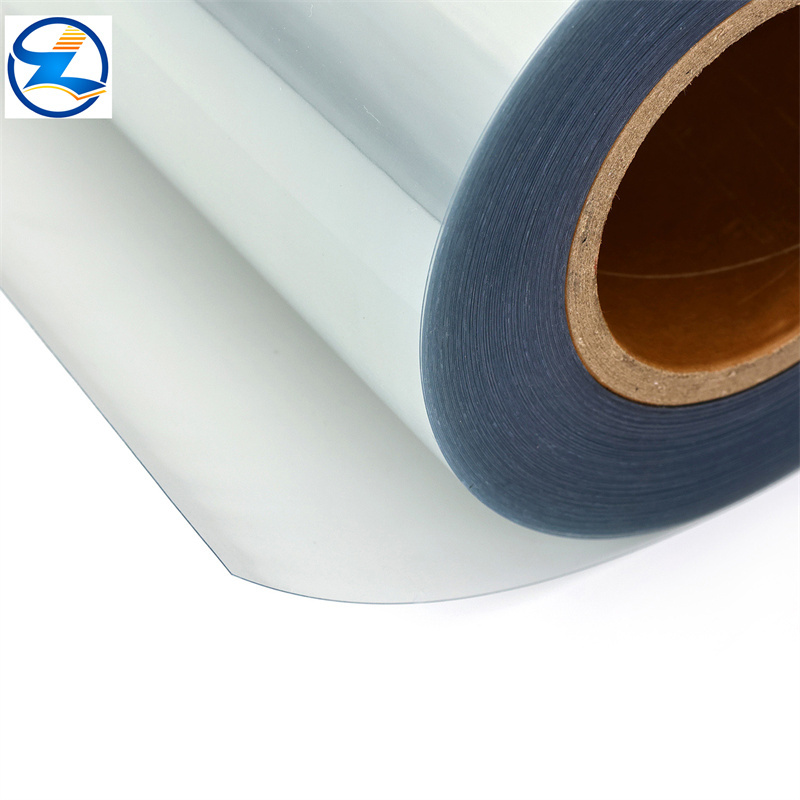

Pharmaceutical Rigid PVC Film Blister
Product namePharmaceutical Grade Rigid PVC Film for Blister Pack
SizeWidth range:60-660mm
Length range:Customized
Thickness range:0.1-0.50mm
ColorAccording to customer's request
Density1.38g/cm³
ApplicationSuitable for primary pharmaceutical blister packing products such as tablet, capsules, also suitable for packing food.
Features1,high degree of transparency
2,high impact
3,bright color
Moq1 ton
Lead time15 days after receiving deposit
Production capacity300 tons per month
PackingInner packing:Each roll to be wrapped with polyethylene bag.
Outer packing:Carton packing, on the pallet with shrinking film
CertificateSgs, al, sfda, iso9001:2000
- Top Leader
- China
- 7 days
- 5000 tons
- Information
- Video
Sound health is always packed in non-toxic and chemical-free foods and pharmaceutical drugs. For the best packaging, TOPLEADERPLASTIC manufactures the excellent rigid PVC film leveraging pharma-grade raw materials and latest calendaring process. The films are manufactured under controlled environment as per current GMP norms and comply with all the food and pharma packaging regulations.
Product Features：
Enable radiation sterilization
Best-in- class thermoforming
Available in varied sizes and color shades
Finest organoleptic properties so the taste and odor is neutral
Remarkable heat-sealing properties
High dimension stability
Gas transmission and moisture rates are low
Appreciable vacuum formation, toughness, and durability
The modern packaging solution by TOPLEADERPLASTIC ranges from 50 to 700 microns and require less fuel in manufacturing and transport as opposed to metal, glass or other materials. That’s increasing its usage and demand in the packaging across the world.
TECHNICAL SPECIFICATION OF RIGID PVC FILM(BLISTER PACKAGING)
| nO. | PARAMETERS | TEST METHOD | UNIT | STANDARD |
|---|---|---|---|---|
| 01 | Color / Appearance | Visual | — | As per Standard Specimen |
| 02 | Thickness of PVC film | DIN 53479 | Micron | 60 TO 100 ± 12 %, 101 TO 200 ± 10 %,201 TO 400 ± 7 %,401 TO 800 ± 5 % |
| 03 | Density | DIN 53479 | g/ cm 3 | 1.35 ± 0.02 |
| 04 | Tensile Strength | DIN EN ISO527 | Kg/cm2 (Min) | 450 |
| 05 | Dimensional Stability MD | DIN 53377 | % (Max) | 60 TO 100 -12 max, 101 TO 200 – 10 max,201 TO 400 -7 max,401 TO 800 – 5 max |
| 06 | Dimensional Stability TD | DIN 53377 | 60 TO 100 + 5 max,101 TO 200 + 3 max,201 TO 400 + 2 max,401 TO 800 + 1 max | |
| 07 | Width tolerance | mm (Max) | ± 1 | |
| 08 | Vicat Softening Point | ASTM –D 1525 | °C | 74 ± 2 |
| 09 | Identification | FTIR | — | To comply |
Test Report
| Item | Specification | Test Result | Conclusion | ||
| Appearance | The PVC Sheet Should be Transparent, uniform. Disallow to have the wrinkledness, greasy dirt, eyewrinker, perforation, impurity. Fisheye's Diameter>1.3mm | Match the Norm | Qualified | ||
| Identify | Infrared spectrum analysis | Should be uniform to the antitheses spectrum | -- | -- | |
| Density g/cm3 | 1.35~1.45 | 1.38 | Qualified | ||
| Physics | Water Vapor Transmission g/m2·24h 23ºC,RH90% | ≤2.5 | 2.26 | Qualified | |
| Oxygen Transmission cm3/m2·24h·0.1MPa | ≤30 | 20 | Qualified | ||
| Tensile Strength MPa | MD:≥ 44 | 52.8 | Qualified | ||
| TD:≥ 44 | 54.7 | Qualified | |||
| Falling Ball Impact Brittle Rate | TD: no more than 2 damage | 0 | Qualified | ||
| MD: no more than 2 damage | 0 | Qualified | |||
| Heating Shrinking rate % | -6~+6 | -3.2,+1.4 | Qualified | ||
| Heating Sealing Strength N/15mm | ≥7.0 | 13.6 | Qualified | ||
| The Content of VCM mg/kg | ≤1 | 0.4 | Qualified | ||
| Test of Extraction | Degree of Clear | Ought to clear | Clear | Qualified | |
| Test of Oxidation | Difference of Titer≤1.0 ml | 0.78 | Qualified | ||
| Heavy Metal mg/kg | ≤1 | <1 | Qualified | ||
| Non-Volatile | water mg | ≤30.0 | 10.3 | Qualified | |
| 65%Ethanolmg | ≤30.0 | 6.9 | Qualified | ||
| Hexanemg | ≤30.0 | 2.8 | Qualified | ||
| Barium | Ought to clear | Match the Norm | Qualified | ||
| Plasticizer | Less than 6% | 2% | Qualified | ||
